Figure 8 Fiber Optic Cable Manufacturer - Self-Supporting Aerial Cable Full Range GYTC8S GYTC8A GYTC8Y for FTTH & Telecom

Complete in-house production line

You are not buying from a trading agent — every reel is designed, drawn, sheathed and tested under one roof.

Loose-tube stranding, FRP / steel strength members, and PE jacketing on the same floor — full control over every process step

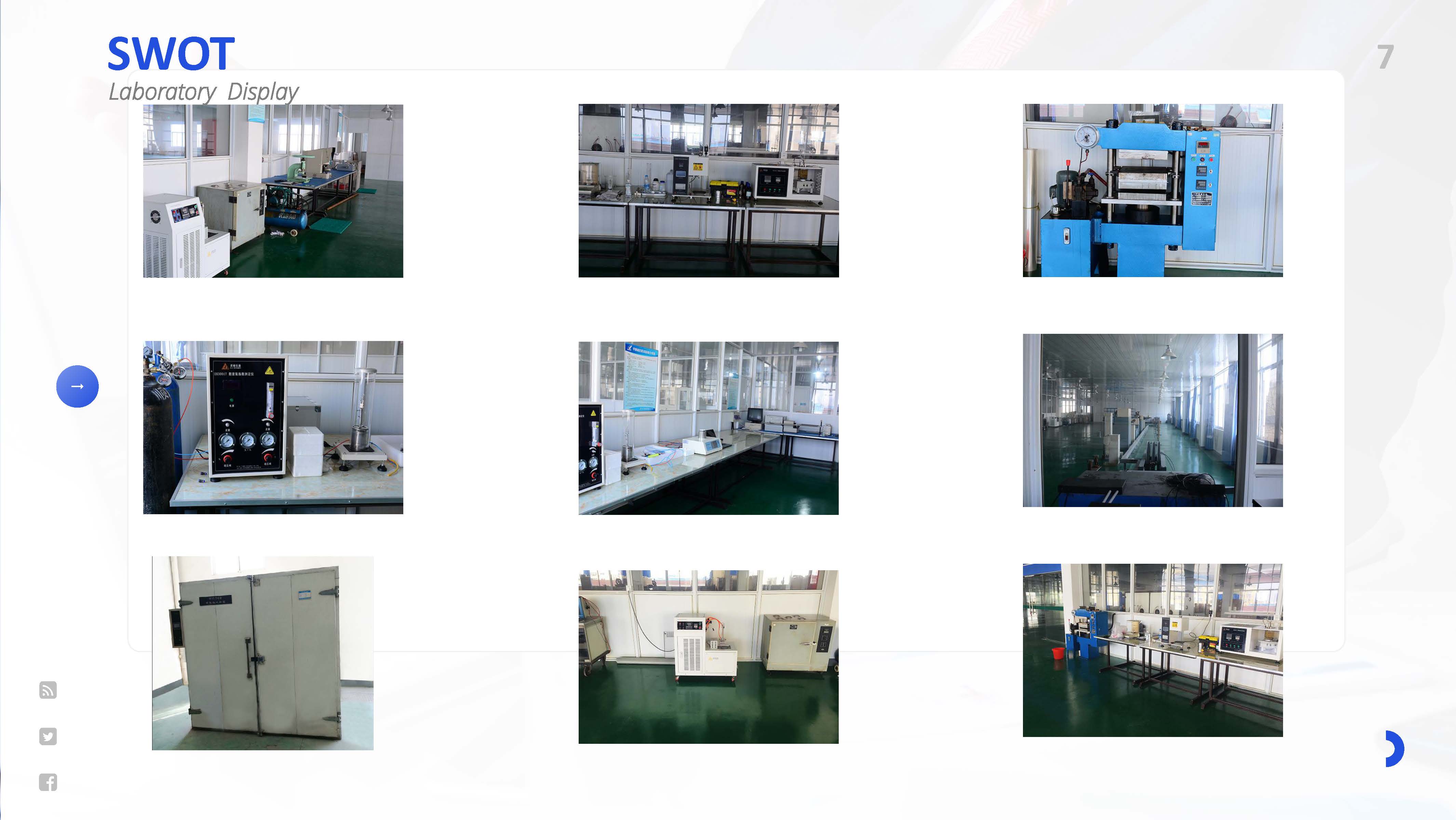

Every batch, every reel, tested

Engineered to ITU-T & IEC standards, manufactured and 100% factory-tested

Custom from the start

Choose fiber count, core structure, jacket type, drum length and packaging. OEM / ODM and private label supported.

Built for global delivery

Export-grade wooden / steel drums, sea-worthy packing, and full documentation to support customs and compliance.

Description

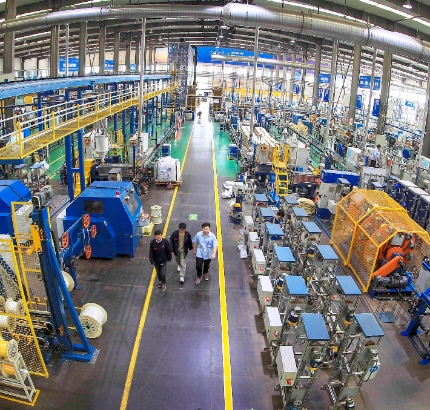

Our Factory

Is there a problem? Please contact us to serve you!

+86-13265756131

[email protected]

Description

Figure 8 optical cable is a self-supporting aerial fiber cable with an integrated messenger wire. It requires no extra mounting accessories, greatly improving on-site construction efficiency.

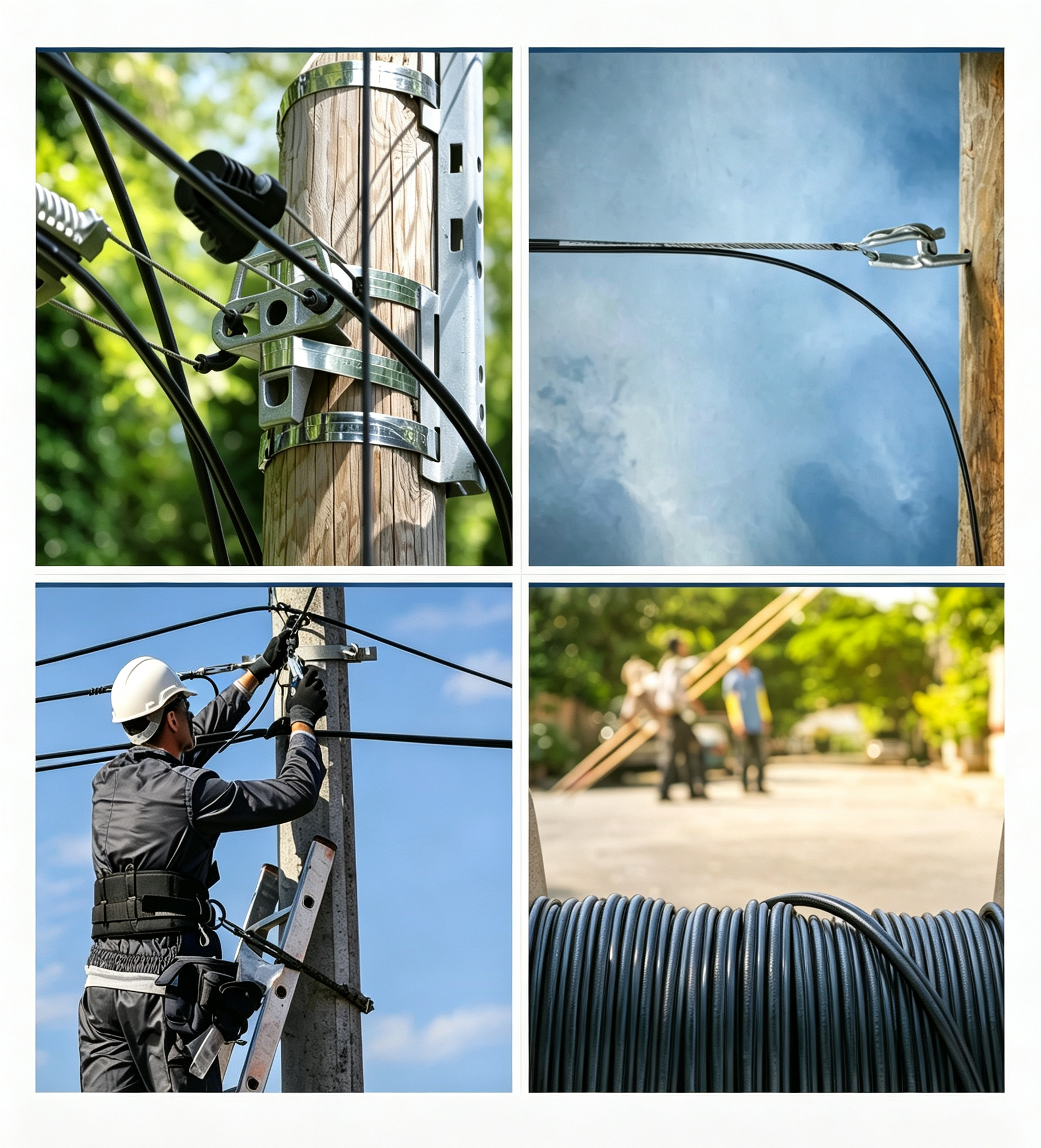

Designed specially for outdoor overhead wiring, this cable features high tensile strength, weather resistance, waterproof and anti-corrosion performance. It is widely used in global telecom operator FTTH projects, rural and urban communication backbone networks, and municipal engineering wiring.

All our figure 8 cables comply with European and American telecom industry standards, fully meeting overseas project acceptance requirements.

Every Figure-8 Configuration, One Supplier

All structures covering FTTH drop to long-span trunk. Fiber count, jacket and drum length all customizable.

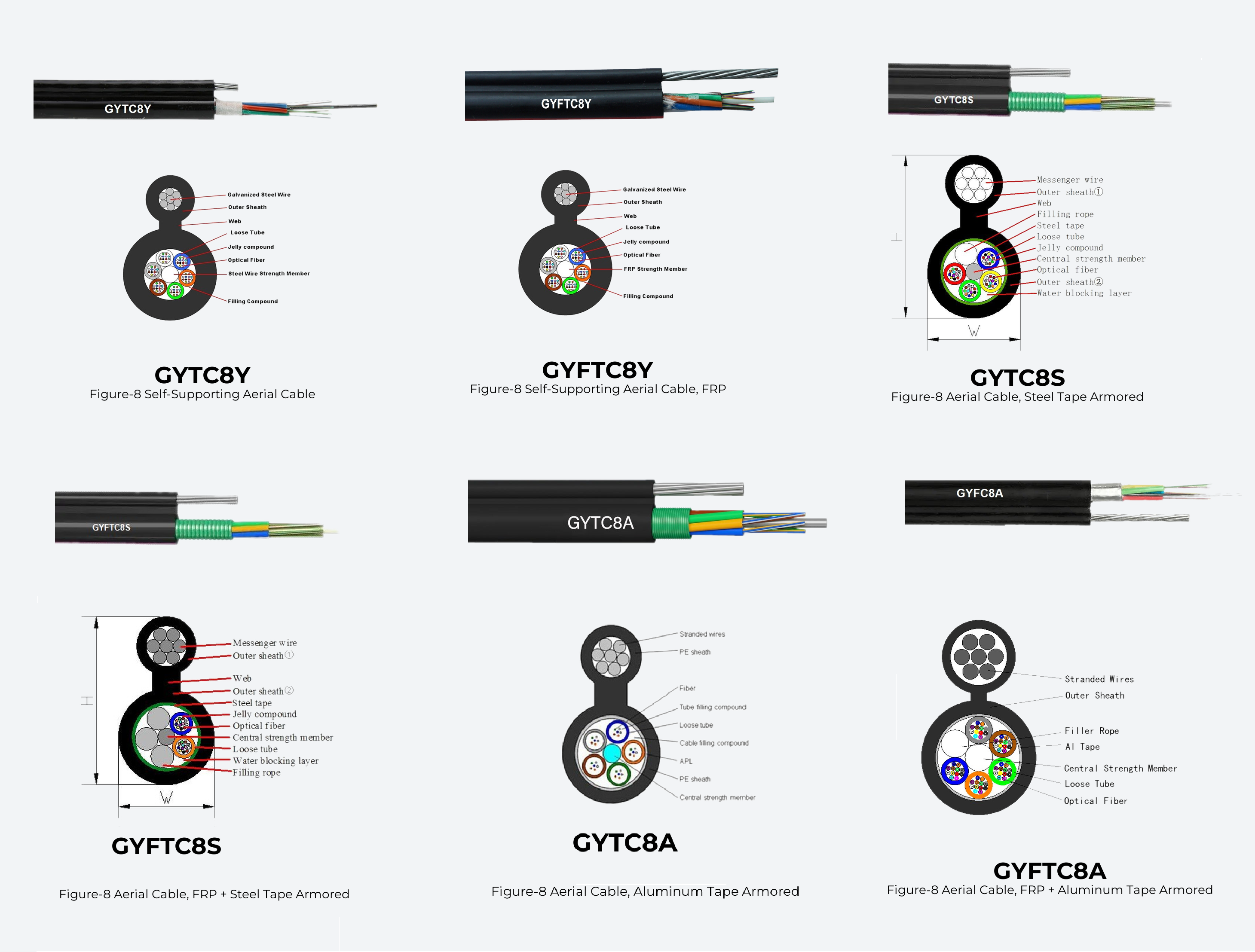

Specification	GY(F)TC8Y	GY(F)TC8S	GY(F)TC8A
Tensile Strength (N)	3500 N	3500 N	3500 N
Crush Resistance (N/100mm)	1000 N	2200 N	1000 N
Operating Temp (°C)	-40°C +70°C	-40°C +70°C	-40°C +70°C
Fiber Count	2‑288 Core	2‑288 Core	2‑288 Core
Typical Span (m)	80m,100m	80m,100m	80m,100m
Jacket Material	PE, HDPE	PE, HDPE	PE, HDPE
Standard	IEC 60794‑1	IEC 60794‑1	IEC 60794‑1
