Multicore Tight Buffered Indoor Distribution Fiber Optic Cable GJFJV/H | 4-24 Core Single Mode G652D G657A1 Multimode OM2 OM3 OM4 | PVC/LSZH Jacket Aramid Reinforced Indoor Optical Cable

Get a Quote Contact Us
  • Description
  • Feature
  • Technical data
  • Performance Parameters Of Optical Fiber
Is there a problem? Please contact us to serve you!

Is there a problem? Please contact us to serve you!

+86-13265756131
[email protected]
Inquiry

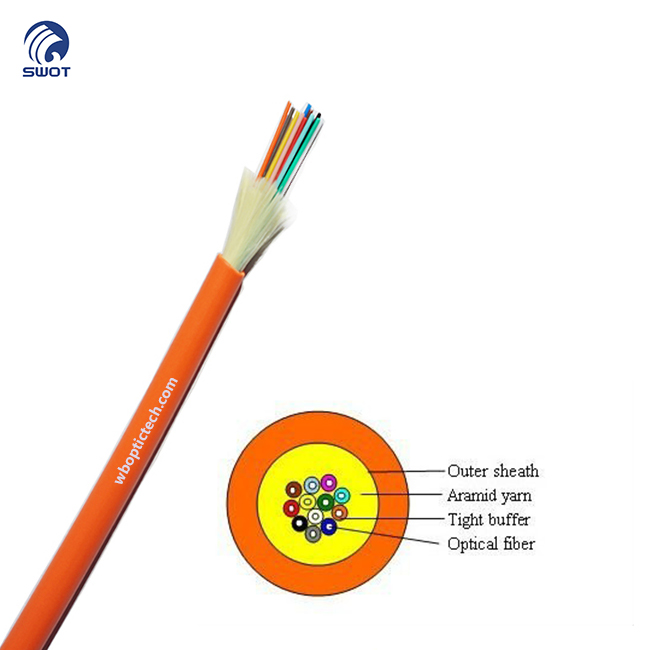

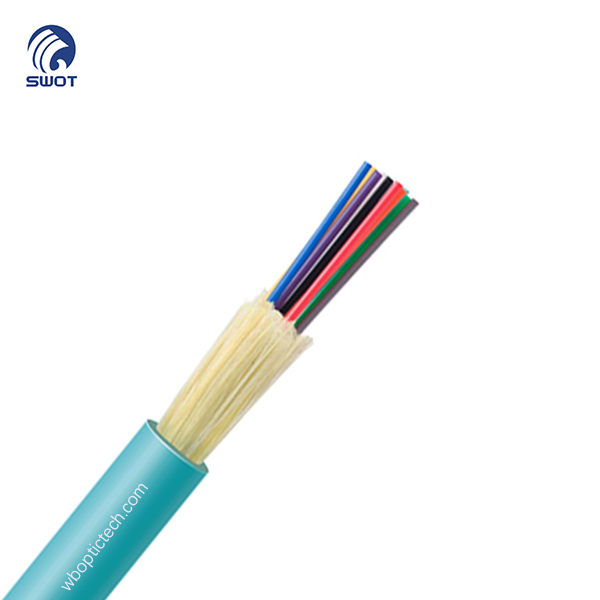

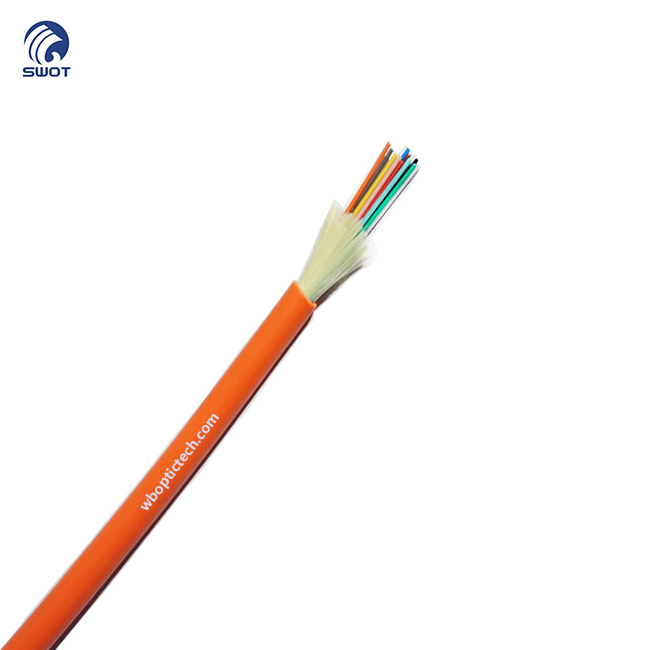

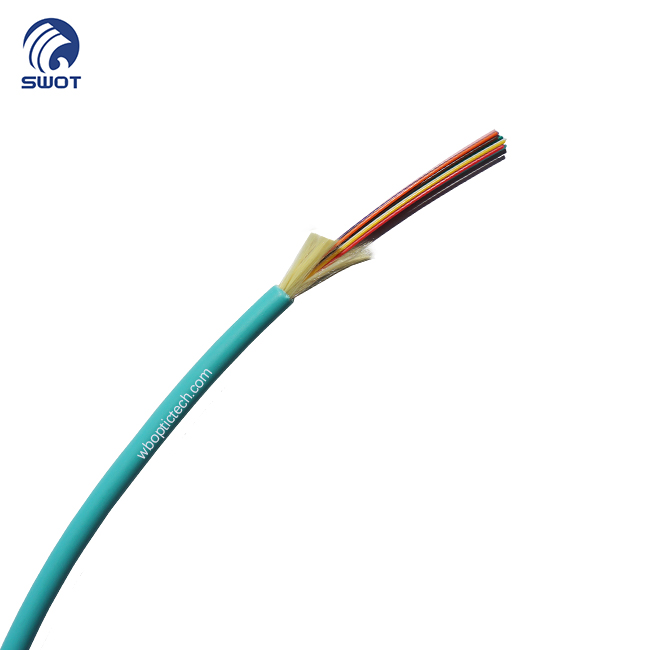

Our GJFJV/H Multicore Indoor Distribution Cable is a tight-buffered all-dielectric fiber optic cable specially engineered for indoor horizontal & vertical building cabling, data center distribution, equipment interconnection and pigtail production. Constructed with color-coded 0.9mm tight buffer fibers, high-tensile aramid yarn strength members and optional PVC or LSZH outer sheath, this cable features compact size, lightweight and excellent flexibility for easy routing and termination. Available in 4/6/8/10/12/16/24 core counts, it supports full range single-mode & multimode fiber types to match diverse network bandwidth & distance demands.

  • GJFJV/H multi-core tight buffered indoor fiber distribution cable with aramid yarn reinforcement for strong tensile & anti-crush performance
  • Dual jacket choice: standard PVC or low-smoke zero-halogen LSZH for fire safety compliant indoor projects
  • Full fiber lineup: G652D/G657A1 single mode, OM1/OM2/OM3/OM4 multimode to support short & long distance high-bandwidth networking

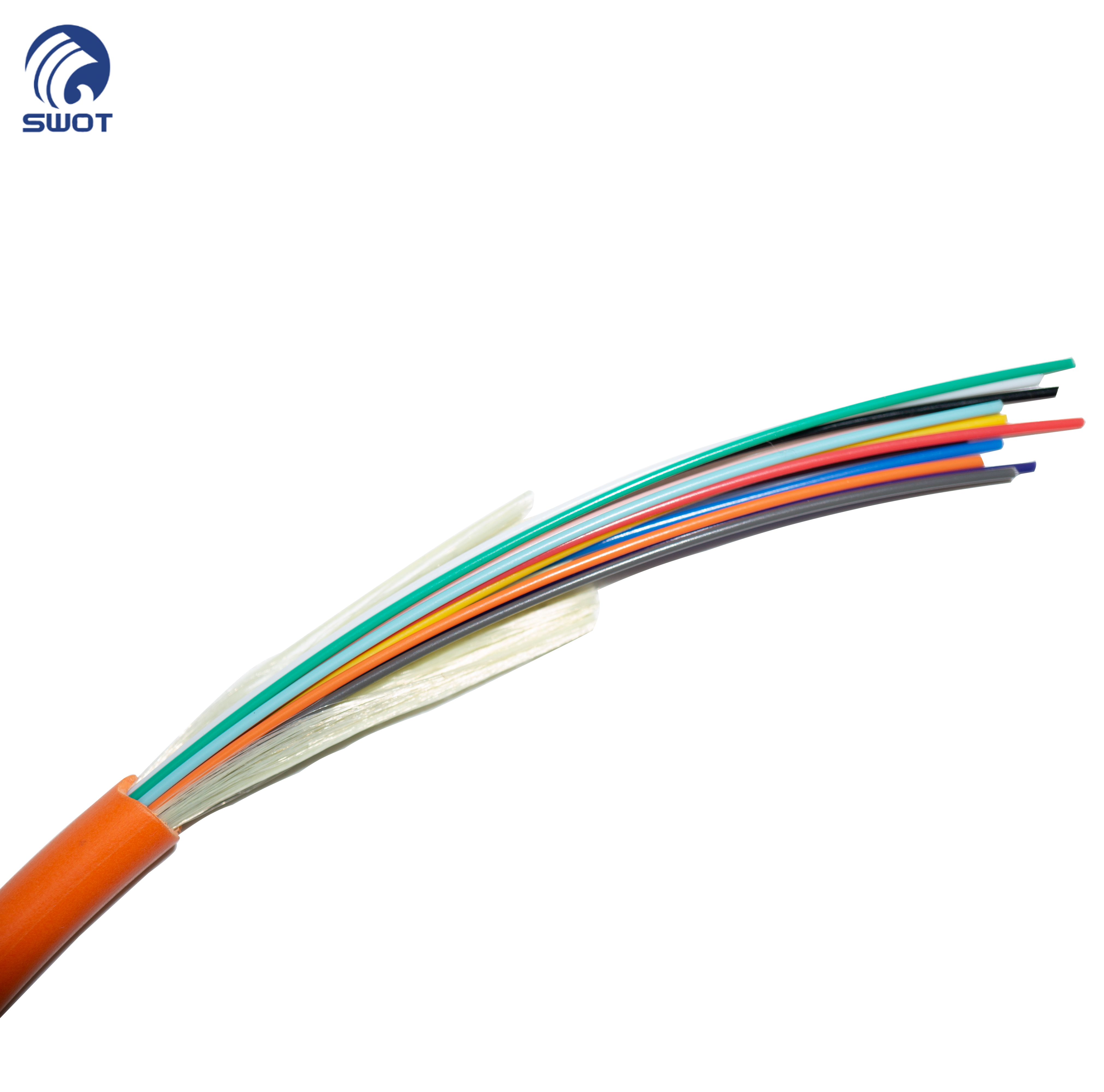

  • Color-coded 0.9mm tight buffer fibers, easy stripping & field termination for fast on-site installation
  • All-dielectric EMI-free design, wide working temperature -40~+70℃, compact lightweight round structure
  • Multiple core counts available: 4/6/8/10/12/16/24 cores, customizable length & fiber specifications

Number of cores

Cable Diameter（±0.2）mm

Cable Weight（±2）kg/km

Allowable Tensile Strength(N)

Short Term/ Long Term

Allowable Crush Resistance (N/100mm)

Short Term/ Long Term

Min. bending radius

Without Tension/ Under Maximum Tension

Temperature range

（℃）

4

4.5

16

440/130

1000/200

10D/20D

-40~+70

6

5.0

24

440/130

1000/200

10D/20D

-40~+70

8

5.4

29

440/130

1000/200

10D/20D

-40~+70

10

5.8

34

440/130

1000/200

10D/20D

-40~+70

12

5.8

36

440/130

1000/200

10D/20D

-40~+70

16

7.0

40

660/200

1000/200

10D/20D

-40~+70

24

8.0

55

660/200

1000/200

10D/20D

-40~+70

Optical Fiber

G652D

G657A1

A1b(62.5/125um)

OM2(50/125um)

OM3-300(50/125um)

OM4(50/125um)

Wavelength(nm)

1310/1550

1310/1550

850/1300

850/1300

850/1300

850/1300

Attenuation

0.8/0.6

0.4/0.3

3.5/1.5

3.5/1.5

2.8/0.7

2.5/0.7

Bandwidth

-

-

200~800/200~1200

160~800/200~1000

≥700/≥500

≥1500/≥700

Colour Of Outer Sheath

Yellow

Yellow

Orange

Orange

Aqua

Violet
