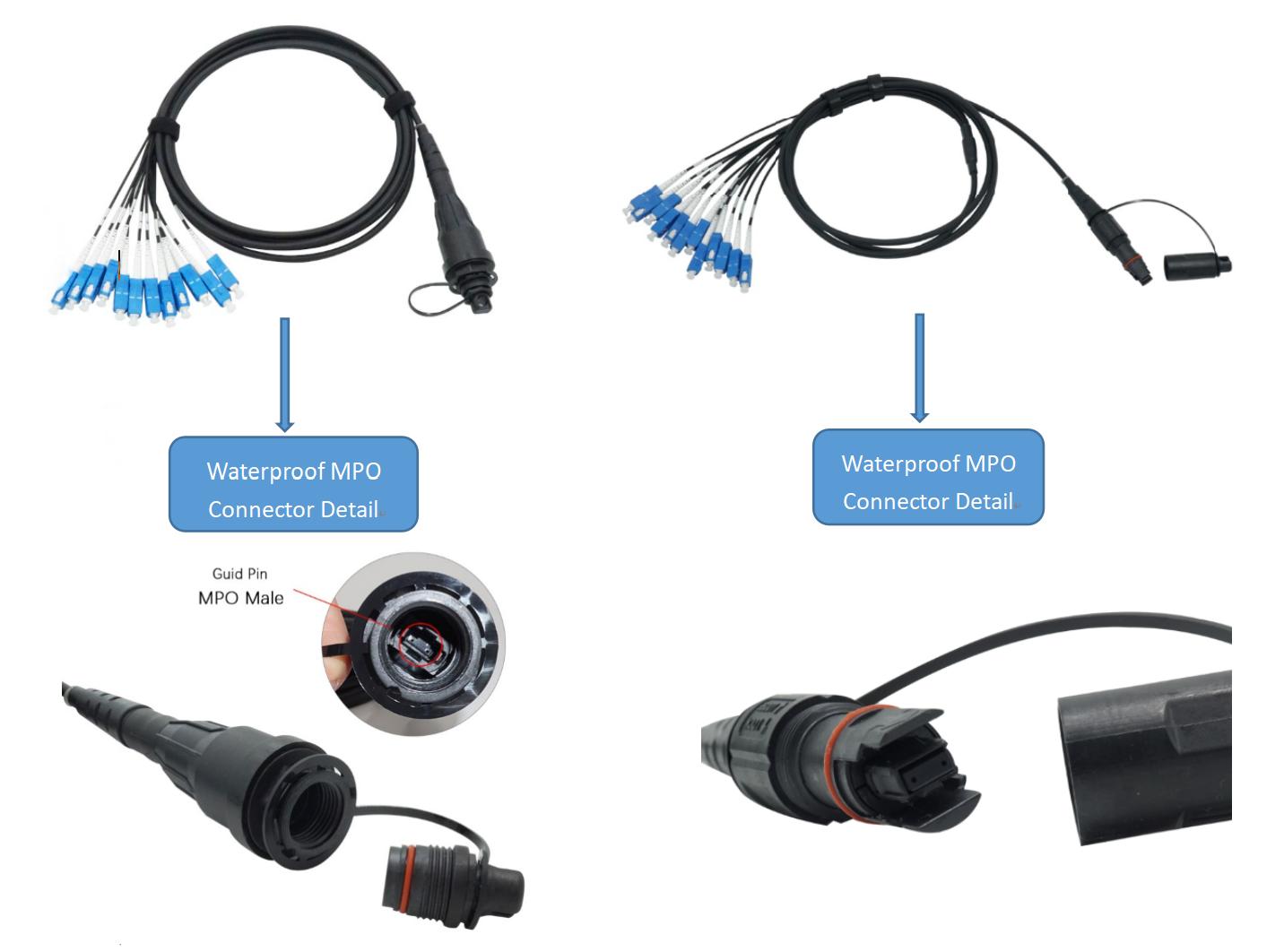

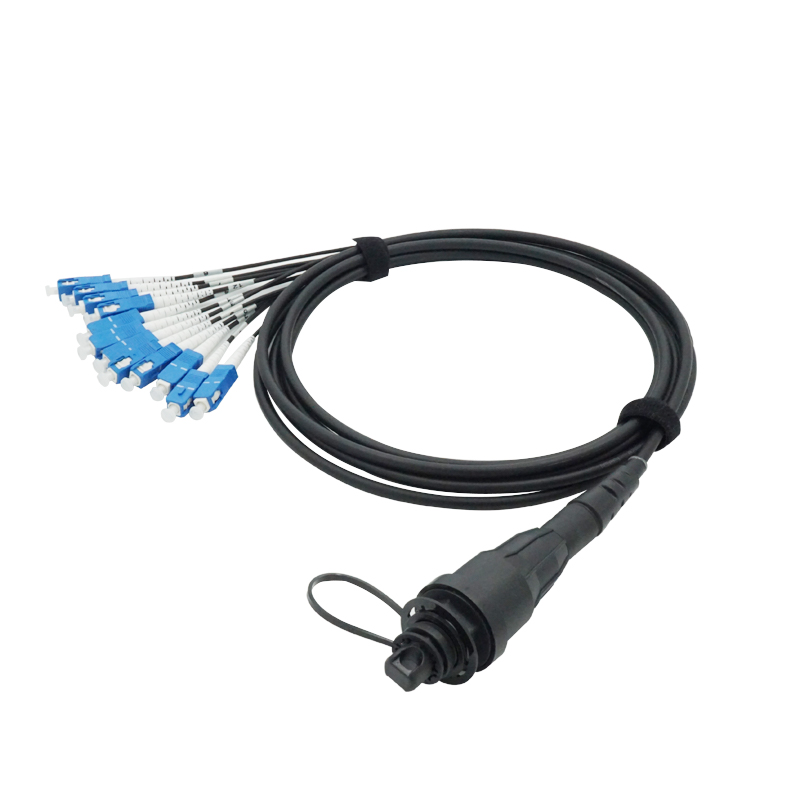

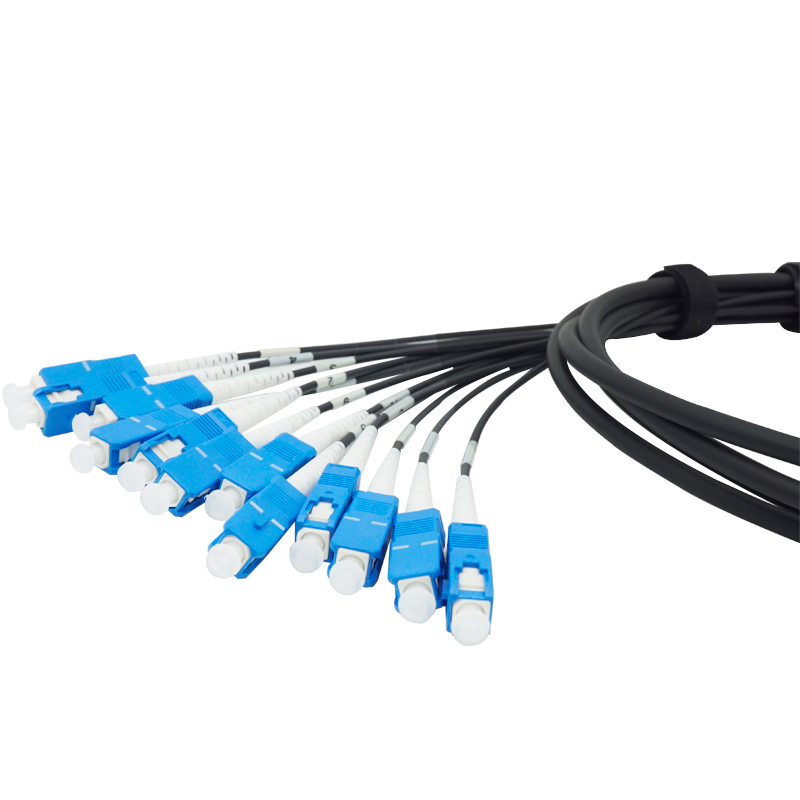

MPO Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
• High Performance in IL & RL
• 4,8,12 and 24 fiber connector terminations and assemblies
• Designed for low loss and standard loss SM and MM applications
• Economical solution for mass-termination of fiber
• Suitable for MPO/MTP application
• Compliant to directive 200/95/EC(RoHS)

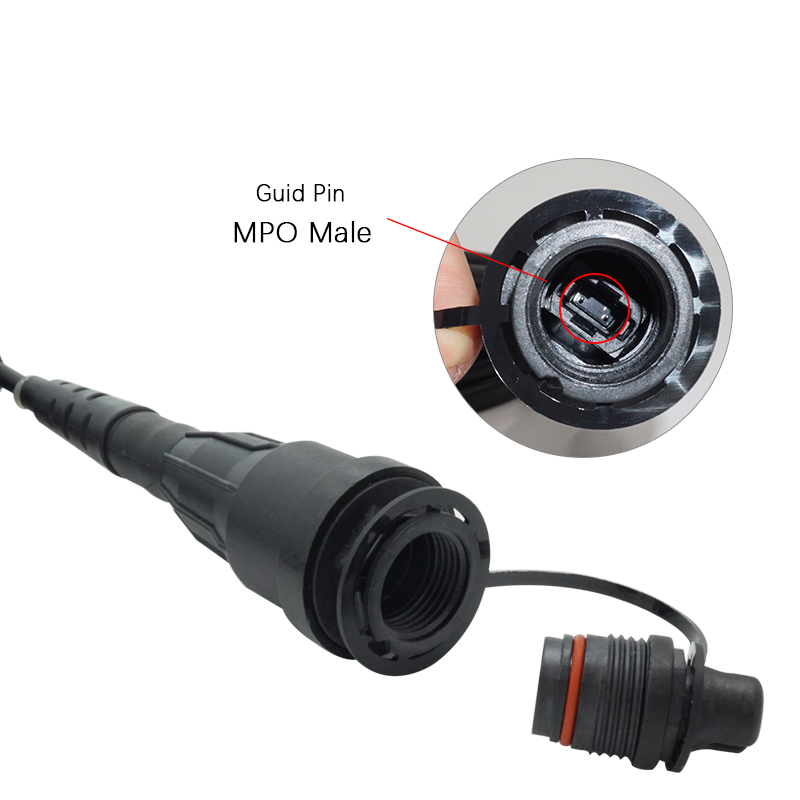

• MPO connector complies with IEC-61754-7
• Data communication network
• Optical System Access network
• Storage area networking fiber channel
• High density architectures
Technical data
| No. of cable | 12 | ||

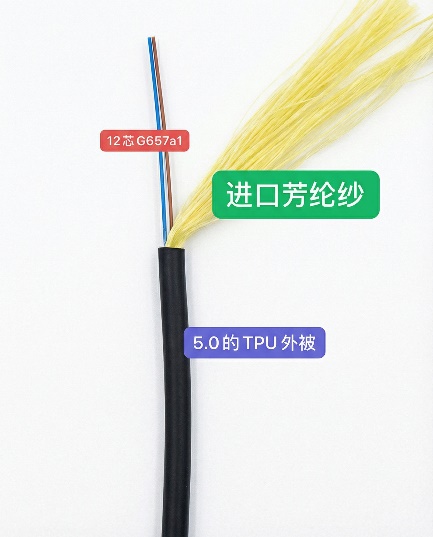

| Fiber Model | G657A1 | ||

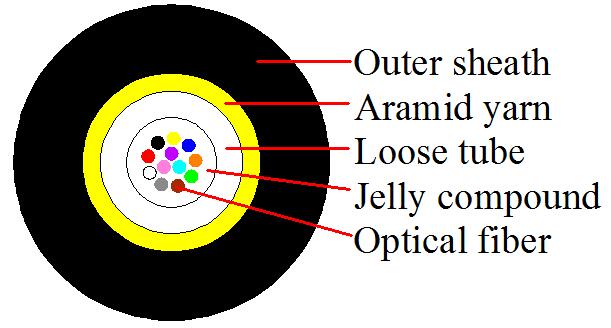

| Loose Tube | Material | PBT | |
| Diameter（±0.1）mm | 2.4 | ||
| Thickness（±0.05）mm | 0.35 | ||
| The Max.Core NO./Tube | 12 | ||
| Strength Member | Aramid Yarn | ||
| Outer Sheath | Material | TPU | |
| Thickness（±0.1）mm | 0.8 | ||
| Cable Diameter（±0.2）mm | 5 | ||
| Cable Weight（±2）kg/km | 16 | ||
| Min. bending radius | Without Tension | 15mm | |
| Under Maximum Tension | 30mm | ||
|
Temperature range （℃） |
Installation | -20~+60 | |
| Transport&Storage | -40~+70 | ||
| Operation | -40~+70 | ||
Application
| NO. | Item | Requirement | |
| 1 | Allowable Tensile Strength | Short Term | 500 N |
| Long Term | 200 N | ||
| 2 | Allowable Crush Resistance | Short Term | 500 (N/100mm) |
| Long Term | 150 (N/100mm) | ||
Fiber Colors
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Gray | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
| Connector Type | Performance Level - Standard | Performance Level - Elite | Pull strength | ||||
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) | (N) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 | ≥68N |
| LC/SC/FC/ST | SM | UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 | ≥68N |
| LC/SC/FC/ST | SM | APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 | ≥68N |
| LC/SC/FC/ST | MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 | ≥68N |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 | ≥68N |
| MPO/MTP | MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 | ≥68N |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / | ≥68N |
| MTRJ | MM | PC | ≤0.5 | ≥35 | / | / | ≥68N |
