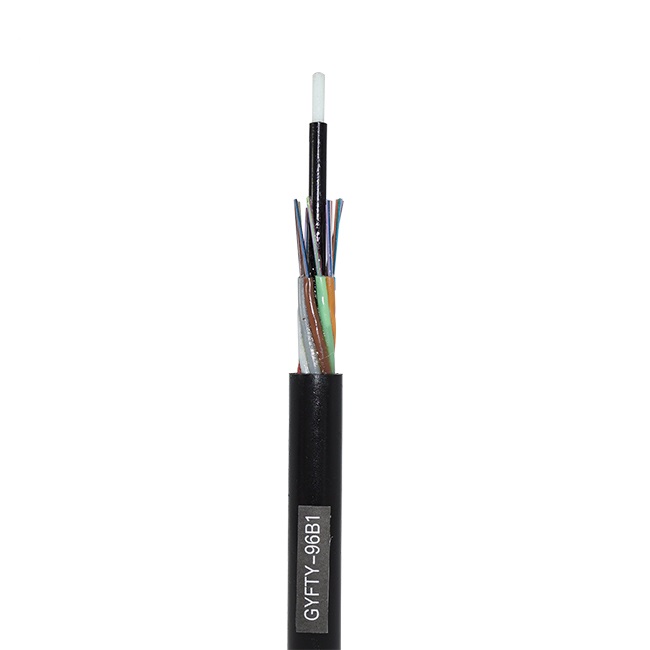

GYFTY All-Dielectric Non-Metallic Duct Underground Fiber Optic Cable 96 Core Anti-Lightning Anti-EMI Pipe Network Cable

Zero Metal Non-Metallic Full Structure

Anti-Lightning & Anti-Electromagnetic Interference

Professional Power Pipe Gully Special Cable

Safe & Stable Duct Wiring Performance

Description
Feature
Technical data

Is there a problem? Please contact us to serve you!

+86-13265756131

[email protected]

Description

GYFTY is a full non-metallic duct-type underground fiber cable without any metal components. It uses FRP strength members and fully dielectric structure to completely isolate lightning induction and electromagnetic interference. It is specially used for underground pipeline wiring in power co-gullies, transformer stations and lightning-intensive areas, with high safety and stability.

Feature

• 100% all-dielectric structure, no metal, zero lightning induction risk

• Super anti-EMI performance, suitable for high-voltage parallel wiring scenarios

• Lightweight cable body, easy for pipeline penetration and construction

• Full gel-filled waterproof design, adapting to humid underground pipeline environment

• Environmental protection and safety, compliant with international power communication standards

• Stable signal transmission, no interference distortion

Technical data

No. of cable		96
Fiber Model		G.652D
Design(Strength Member + Tube &Filler)		1+8
Central Strength Member	Material	FRP with PE
	Diameter（±0.05）mm	2.0
Loose Tube	Material	PBT
	Diameter（±0.06）mm	2.0
	Thickness（±0.03）mm	0.35
	The Max. Core NO./Tube	12
Filler Rope	Material	LDPE
	Color	White
	Diameter（±0.06）mm	2.0
Water Blocking layer（Material）		Flooding Compound
Outer Sheath	Material	MDPE
	Thickness（±0.2）mm	1.8
Cable Diameter		10.8
Cable Weight		85
Min. bending radius	Without Tension	10.0×Cable -φ
	Under Maximum Tension	20.0×Cable -φ
Temperature range （℃）	Installation	-20~+60
	Transport & Storage	-40~+70
	Operation	-40~+70
