CPRI fiber patch cable is the ideal design for outdoor fiber cable applications. Such product can meet the FTTA(fiber to the Antenna) program requirements for outdoor environment conditions. Especially in the 3G, 4G, 5G Base station (BBU to RRU). CPRI fiber patch cable are rapidly becoming the standard connector interface.
• Cost effective solution for in house termination.
• Easily add/install jumper cables for a future expansion
• Factory-assembled cables for a fast on-site installation
• Flexibility with small bending radius and excellent cable routing properties
• Equipped with customer specific power and fiber optic connectors
|
• Telecommunication networks • Multi-purpose Outdoor • For connection between BBU and RRU • Deployment in Remote Radio Head cell tower applications |
 |
| Cable Model | GYFJH |
| Fiber Count | 2 Fibers |
| Fiber Type | SM G652D, SM G657A, or MM 50/125 or MM 62.5/125 |
| Fiber Attenuation | 1310 nm≤0.36 dB/km ; 1550 nm≤0.22 dB/km |
| 850 nm≤3.0 dB/km ; 1300 nm≤1.0 dB/km | |
| Buffer Diameter | 900um±10um |

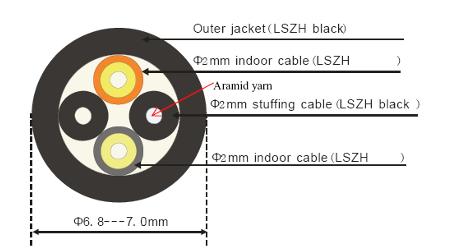

| Inner Cable | Diameter：2.0mm±0.1mm ； Material：LSZH |
| Filler | Diameter：2.0mm±0.1mm ；Material：LSZH ; Color：Black |
| Strength Member | Aramid Yarn |

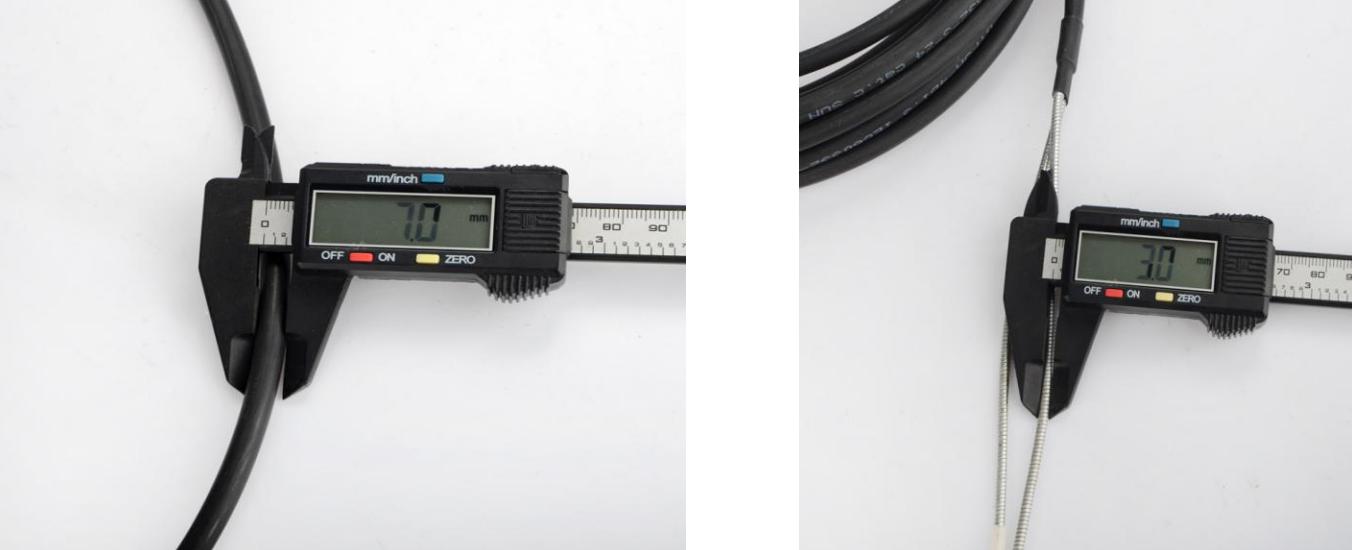

| Jacket | Diameter：7.0±0.2mm ; Material：LSZH ;Color：Black |
| Min Bending Radius(mm) | Long term :10D; Short term: 20D |
| Minimum allowable Tensile Strength (N) | Long term :200; Short term: 400 |
| Minimum allowable Crush Load (N/100mm) | Long term :1100 ; Short term: 2200 |

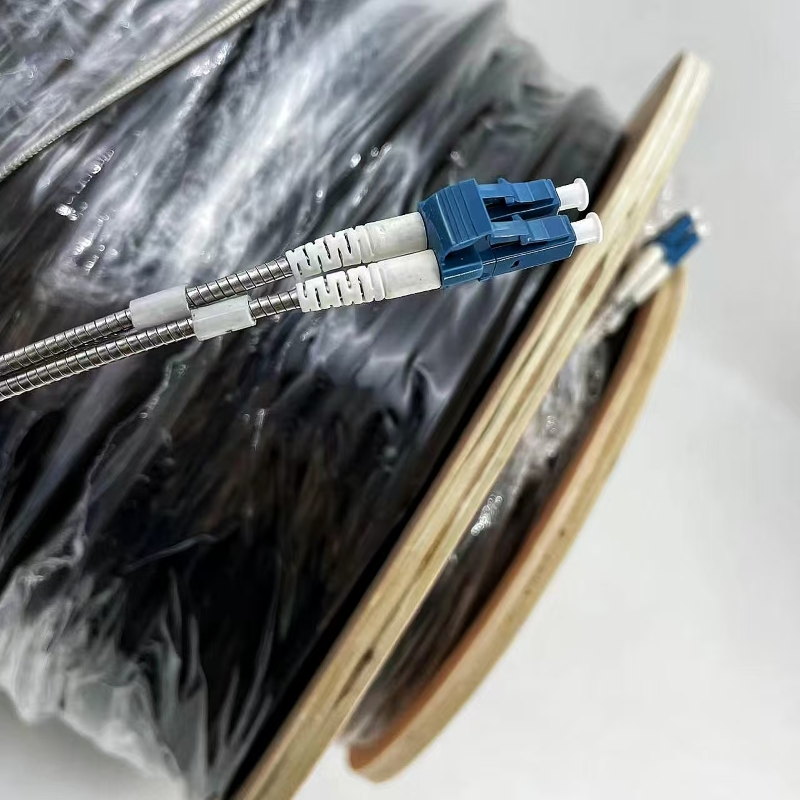

| Connector Types | DLC-DLC |
| Connector Insertion Loss | max≤0.30dB; (Typical≤0.15dB) |
| Connector Return Loss | SMF: UPC≥50 ；MMF: ≥30 |
| Operating Temperature | -40~85℃ |
| Wavelength | 1260nm-1650nm |
| Storage Temperature | -40~85℃ |

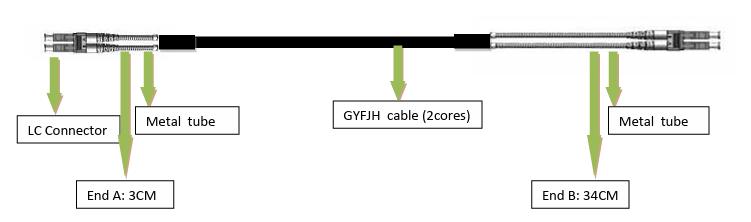

| Branch length | A:30mm ;B: 340mm |
| Packing material | ZIP Bag / Wooden drum |

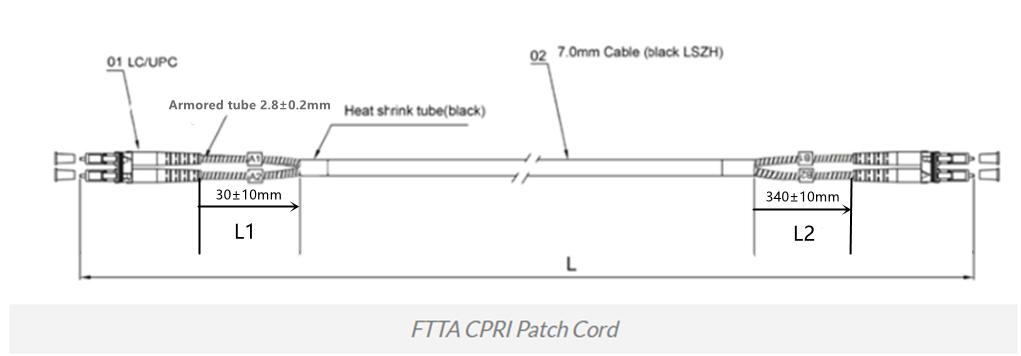

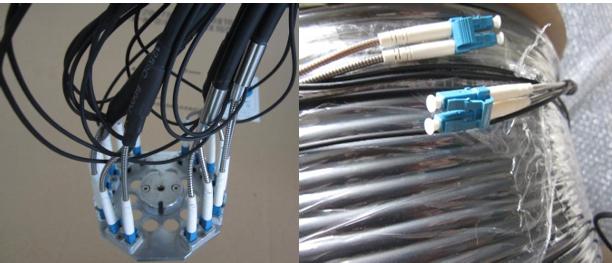

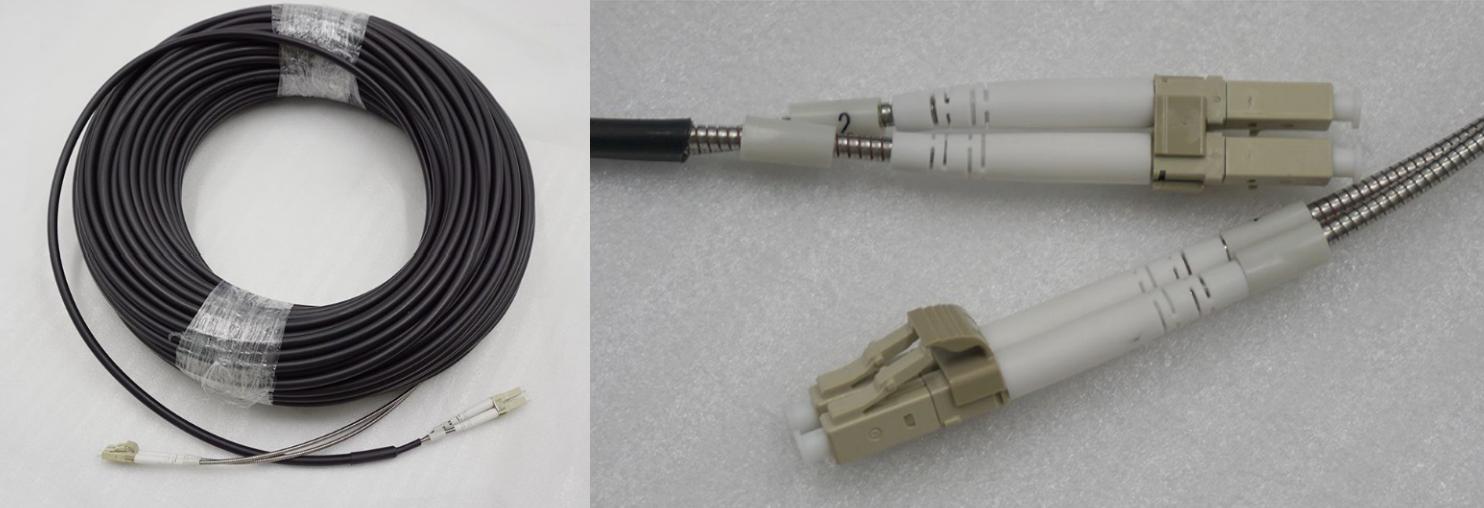

CPRI Optical Cable Assembly, DLC/PC-DLC/PC , GYFJH (LSZH)2.0mm/7.0mm Black Jacket 2 cores, Breakout LC 0.34m/LC 0.03m, Outdoor Protected Branch Cable

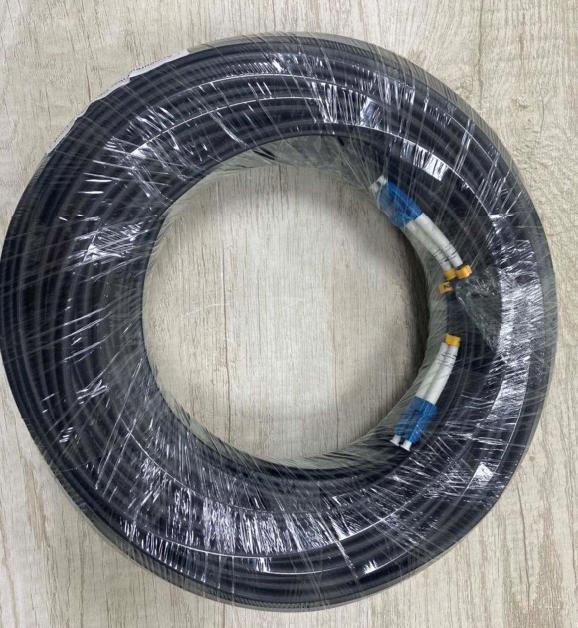

1. 20-100 Meter, 1pc/roll, then in master carton.

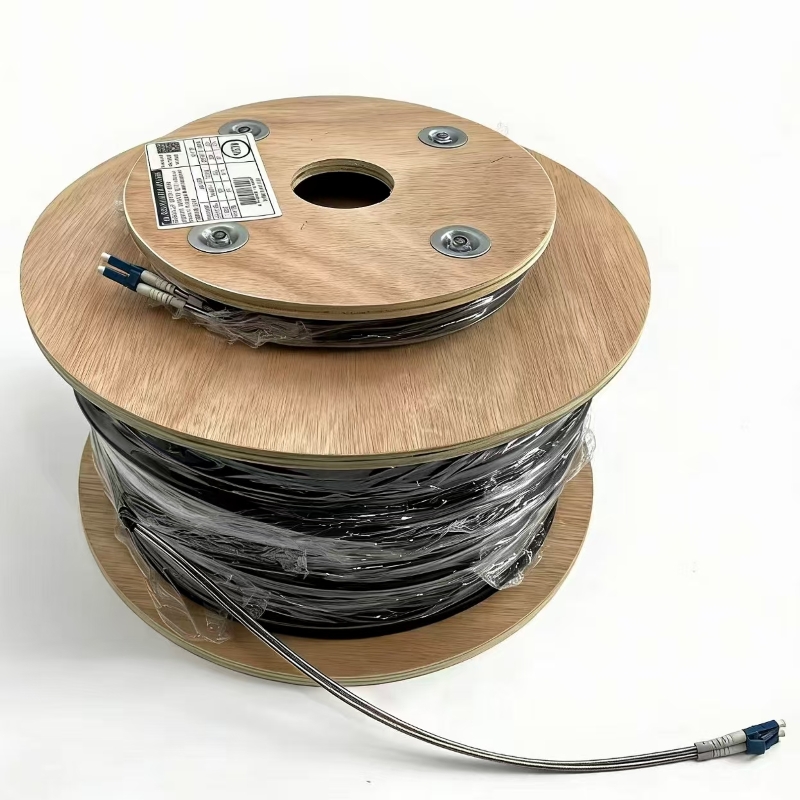

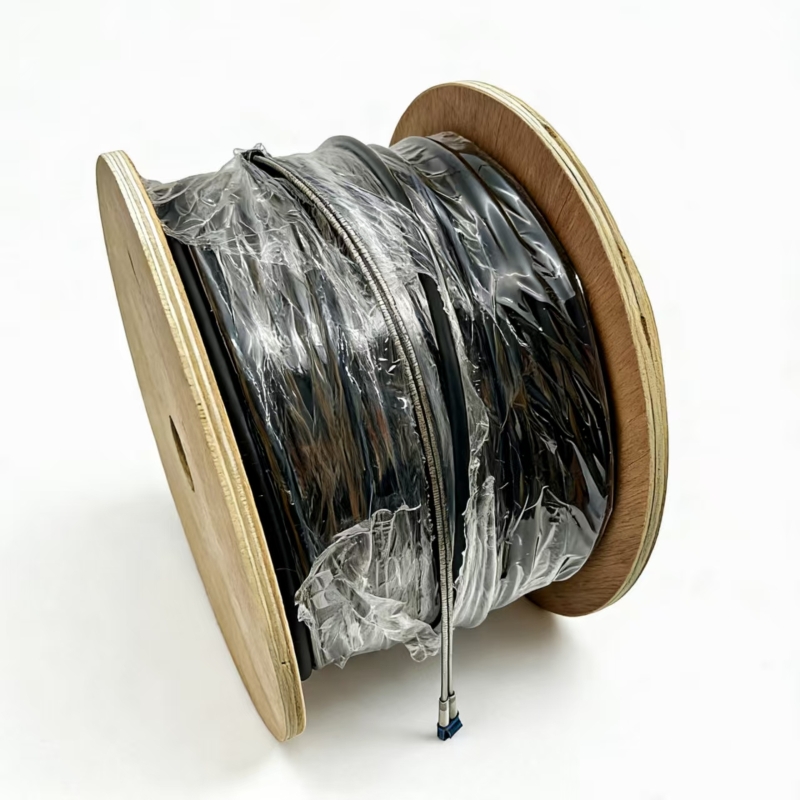

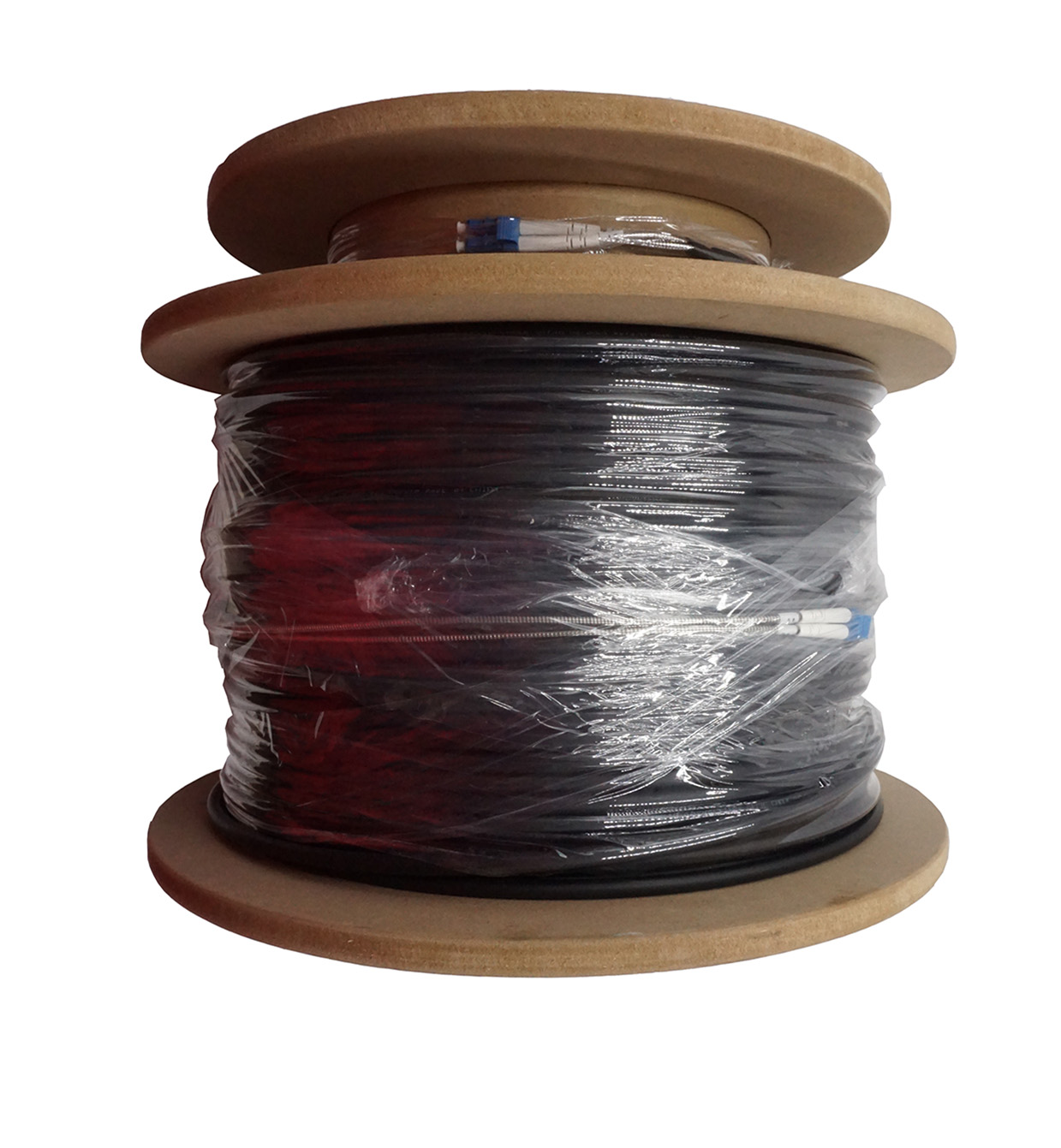

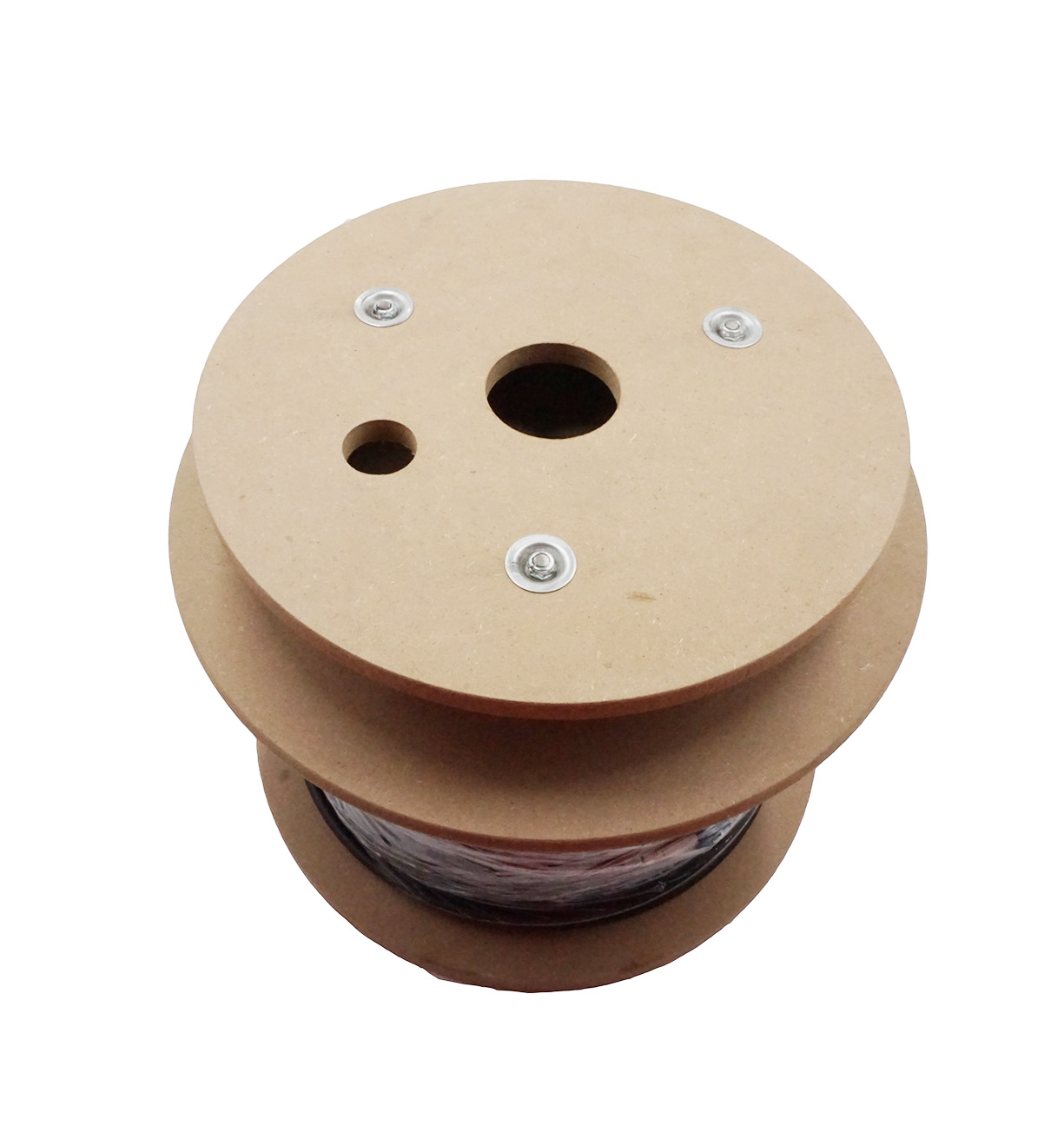

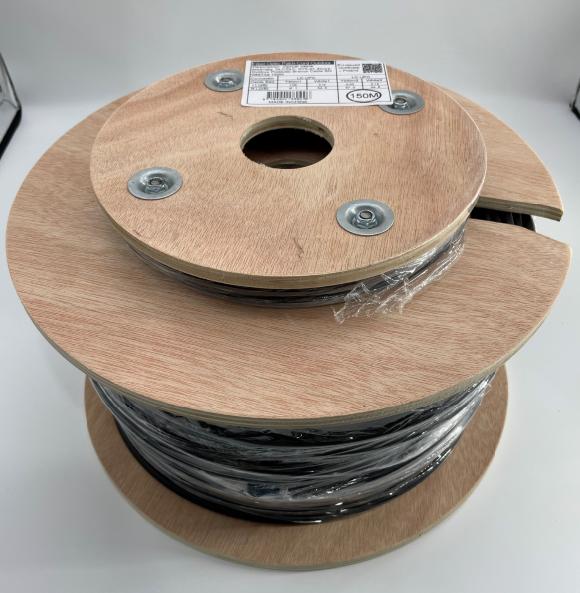

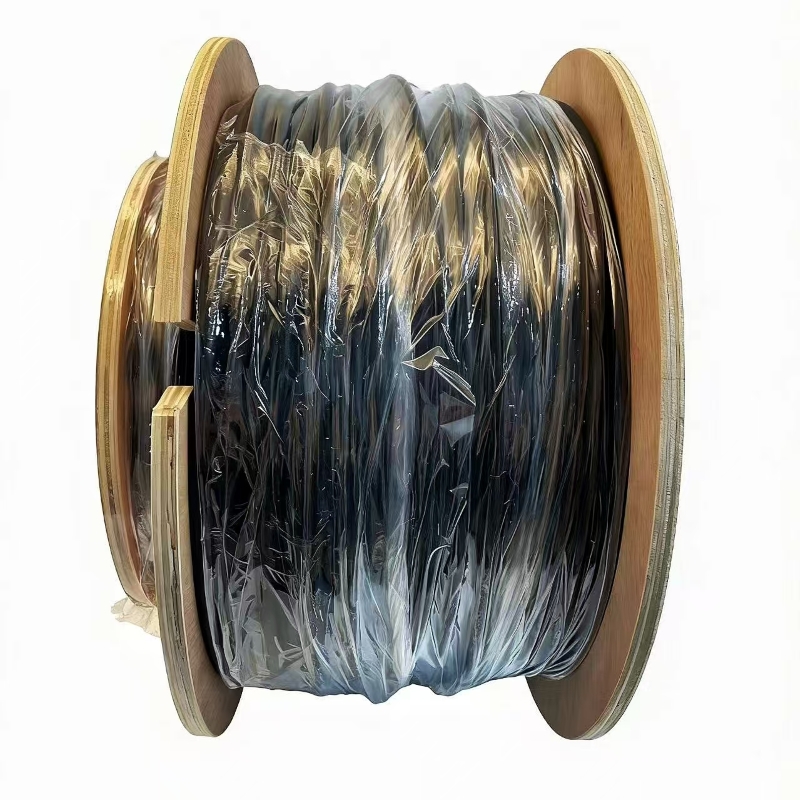

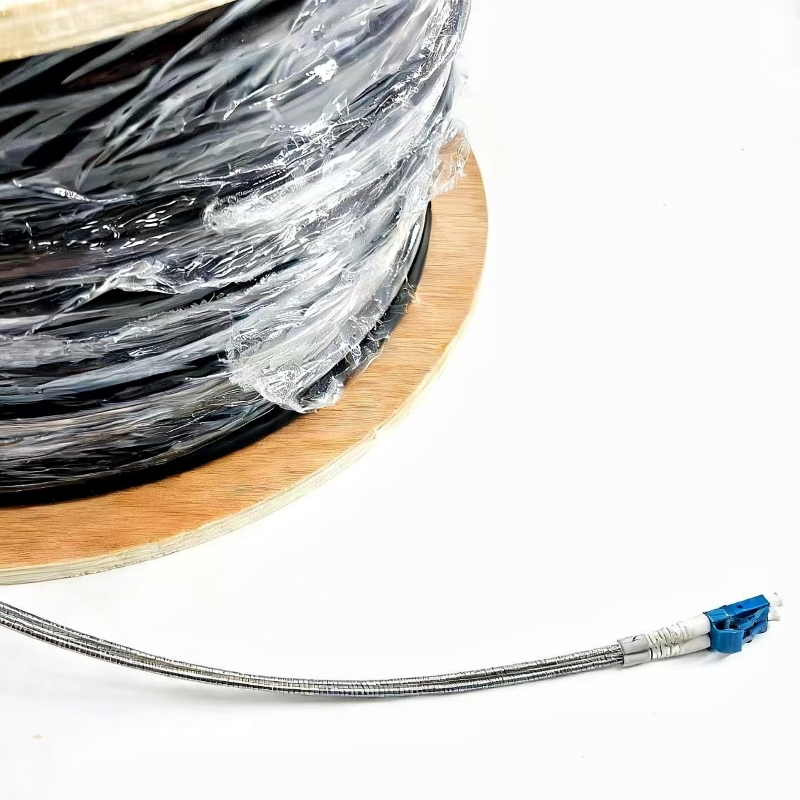

2. 150 Meter-350 Meter, 1pc/wooden roll, Then in master carton.
