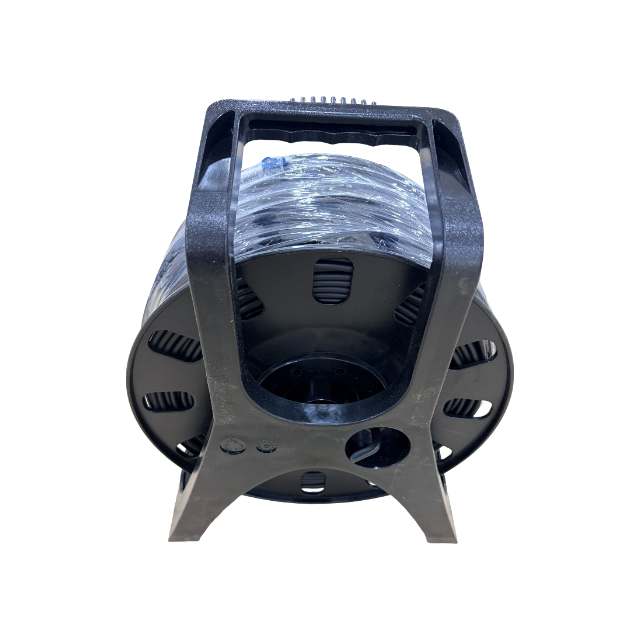

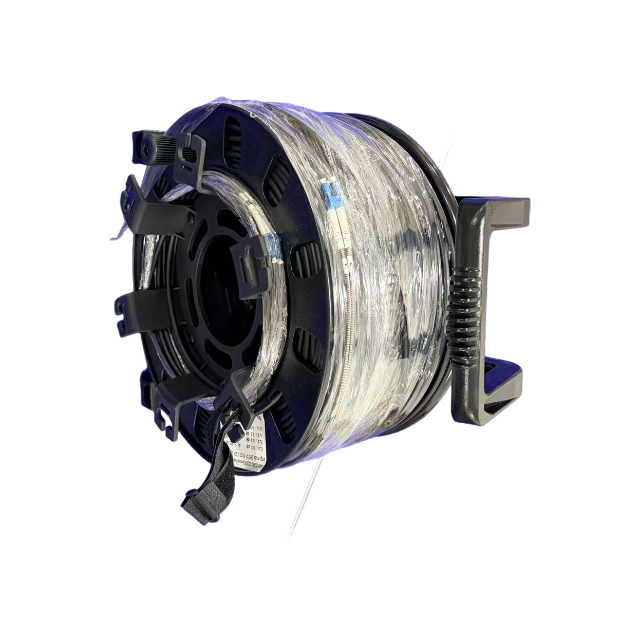

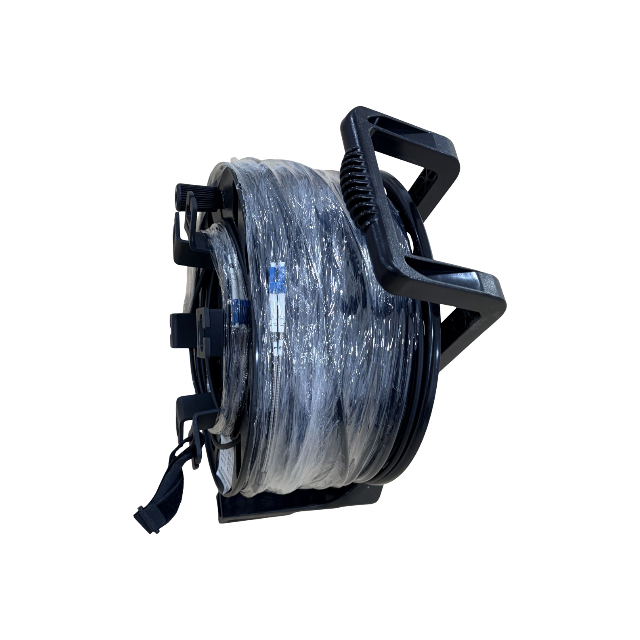

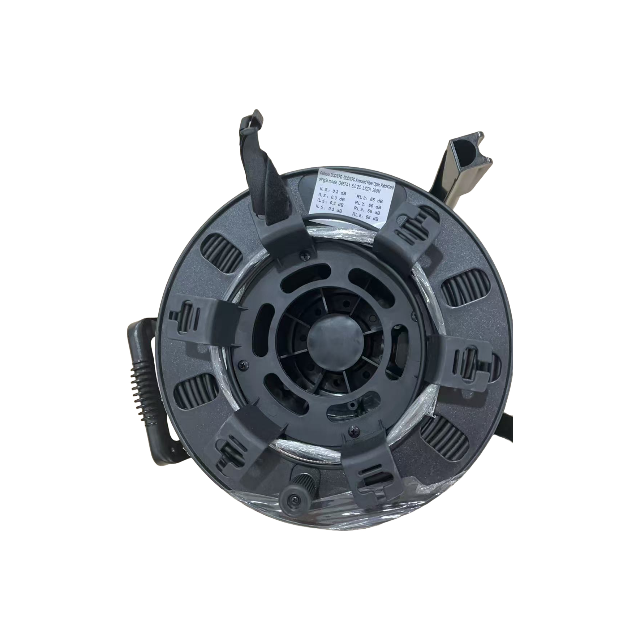

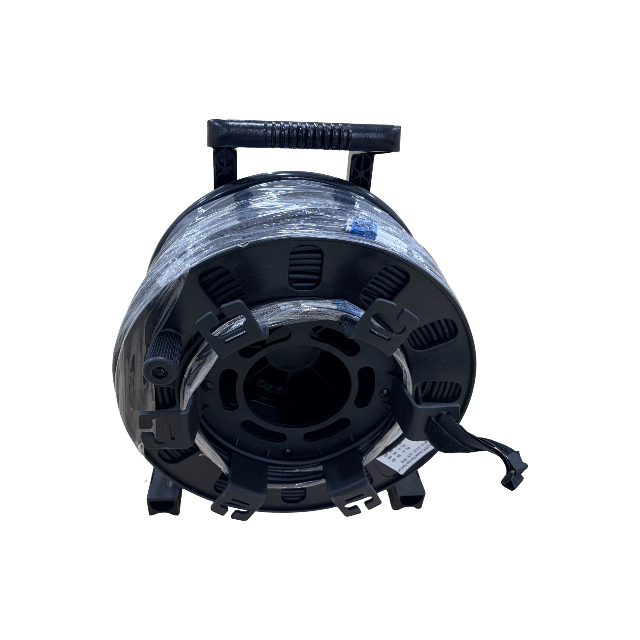

CPRI fiber patch cable is specially designed for harsh outdoor fiber applications. It fully meets the FTTA (Fiber to the Antenna) requirements and is widely used for 3G/4G/5G base station connections between BBU and RRU. This 5.0mm 2-core outdoor armored is suitable for extreme temperature environments. It contains 2 G657A fibers, reinforced with aramid yarn strength members and metal braiding for excellent durability and crush resistance.
Pre-terminated with LC-LC connectors, it ensures stable and reliable outdoor transmission. The cable is ideal for communication, mobile broadcast, emergency response, temporary networking and other harsh outdoor cabling scenarios.
• Cost effective solution for in house termination.
• Easily add/install jumper cables for a future expansion
• Factory-assembled cables for a fast on-site installation
• Flexibility with small bending radius and excellent cable routing properties
• Equipped with customer specific power and fiber optic connectors
• Telecommunication networks
• Multi-purpose Outdoor
• For connection between BBU and RRU
• Deployment in Remote Radio Head cell tower applications

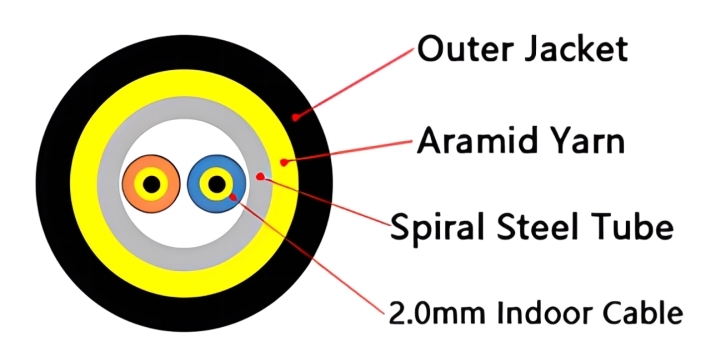

| No. of cable | 2 | ||
| Fiber Model | G657A1 | ||
| Strength Member | Material | Aramid yarn | |
| Tight buffer | Material | PVC | |
| Diameter（±0.06）mm | 0.9 | ||
| Thickness（±0.03）mm | 0.32 | ||
| Strength Member | Material | Spiral steel tube | |
| Outer Sheath | Material | LSZH | |
| Thickness（±0.1）mm | 1 | ||
| Color | Black | ||
| Cable Diameter（±0.2）mm | 5 | ||
| Min. bending radius | Without Tension | 10.0×Cable-φ | |
| Under Maximum Tension | 20.0×Cable-φ | ||
|
Temperature range （℃） |
Installation | -20~+60 | |
| Transport&Storage | -40~+70 | ||
| Operation | -40~+70 | ||

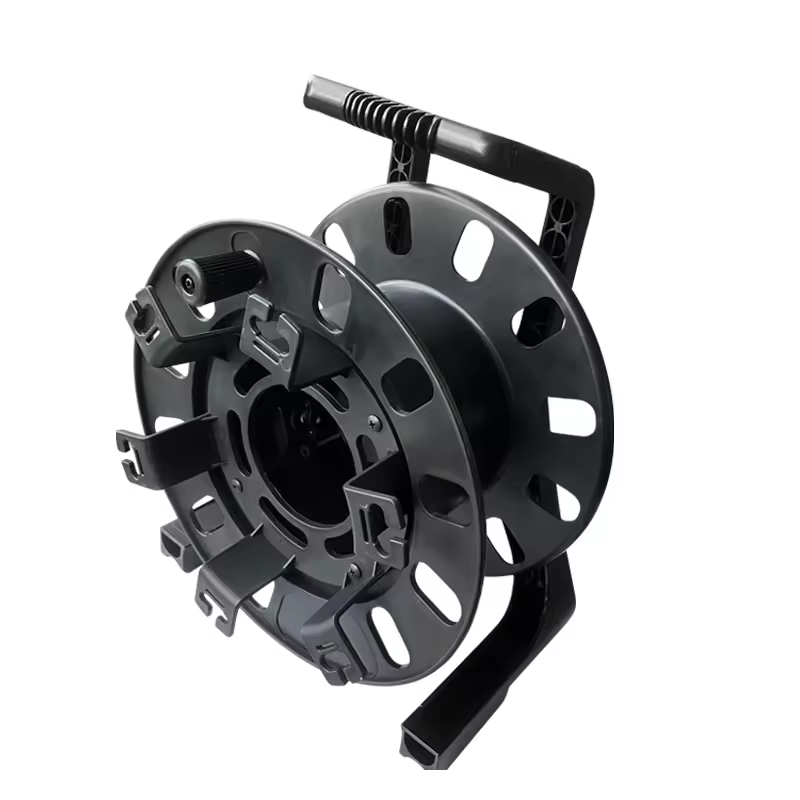

| Cable Diameter | 3.0mm | 5.0mm | 6.0mm | 6.5mm | 7.0mm | 8.0mm | 9.0mm | 10.0mm |
| Cable length | 628m | 226m | 157m | 134m | 115m | 88m | 70m | 57m |
